CORTEN RETAINING WALL STEEL POST HOW TO
Retaining wall sizes and prices
Corten retaining wall system with hidden fixings and is finished off with a rounded corten capping

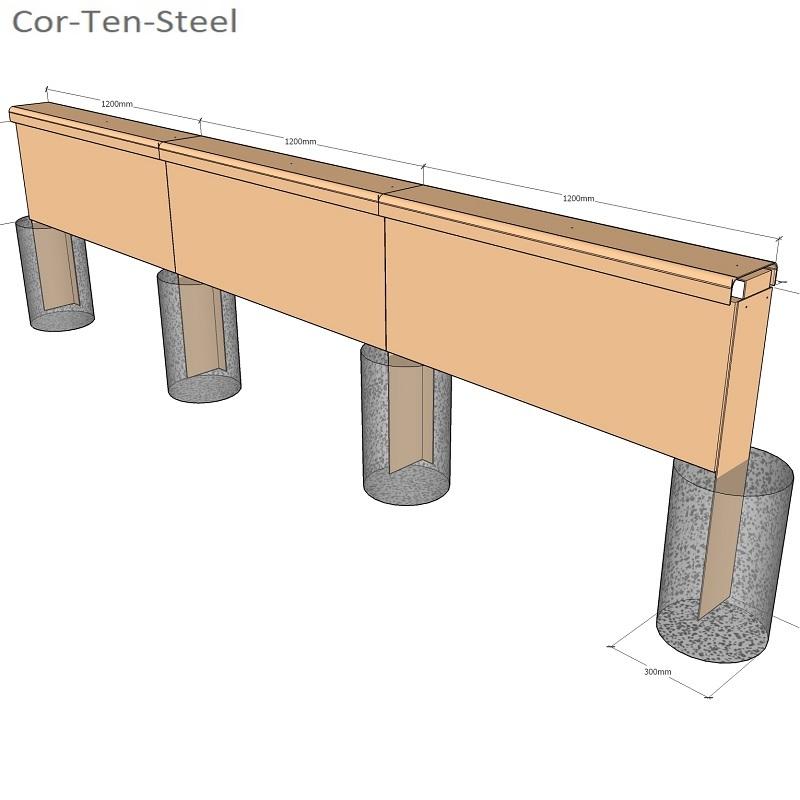

Corten steel angle posts set in concrete pile holes
Our system is ideal for retaining walls 2′ up to 4′ We are also able to supply taller or shorter retaining walls if required using the same system.

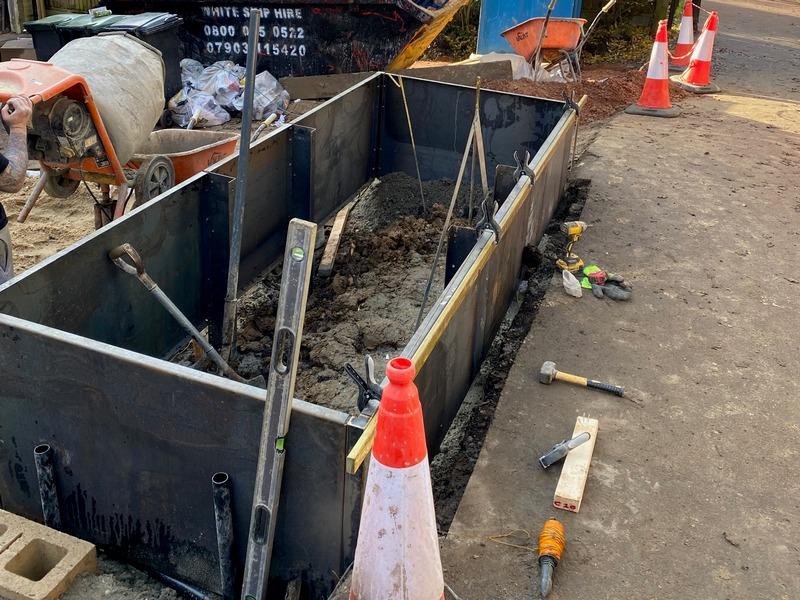

Corten wall braced while concrete sets
All parts in our corten retaining wall system come ready to install, with no special tools required The steel is either screwed or bolted together
Corten retaining walls
The modular layout has over 50 different panel sizes to choose from, this enables you to build corten retaining walls that suit almost any location
Corten post
Corten post ready for next panel to be screwed on
Need help?
Please email us your requirements, be sure to attached pics and sketches We can then help you with post and panel sizes required for your retaining wall

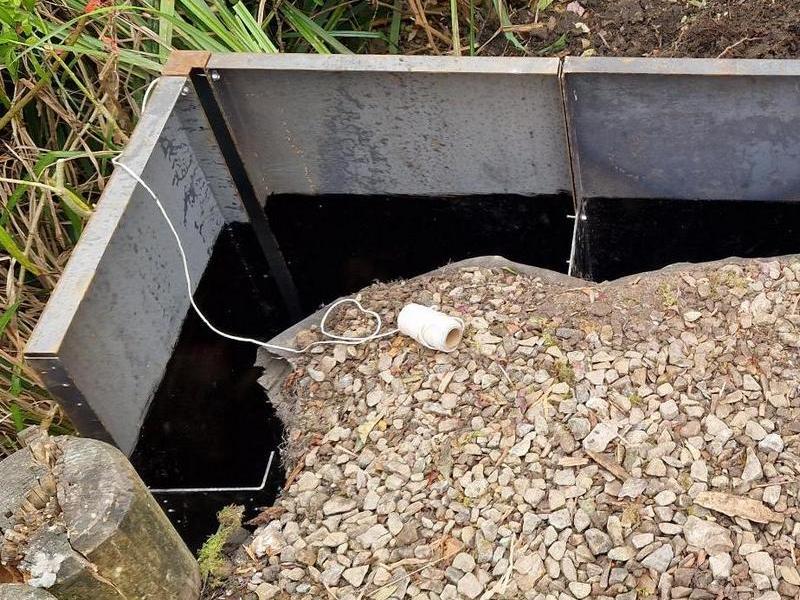

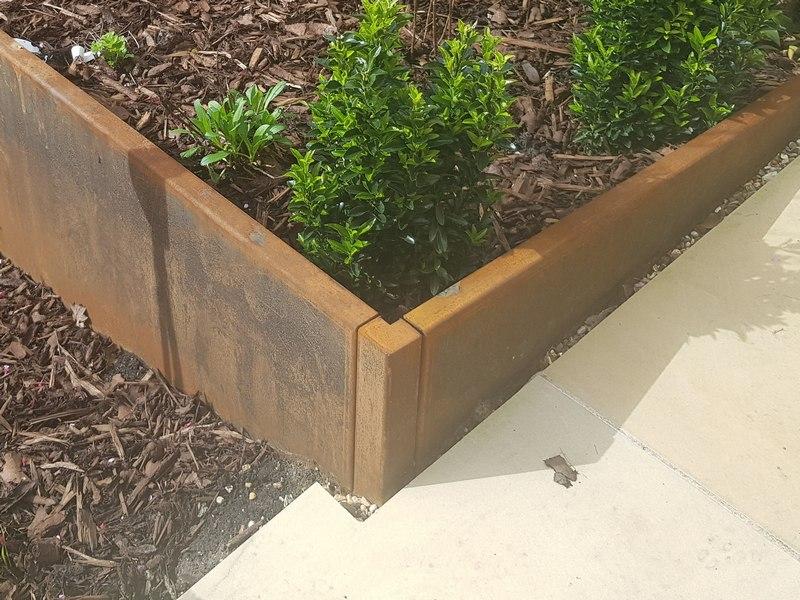

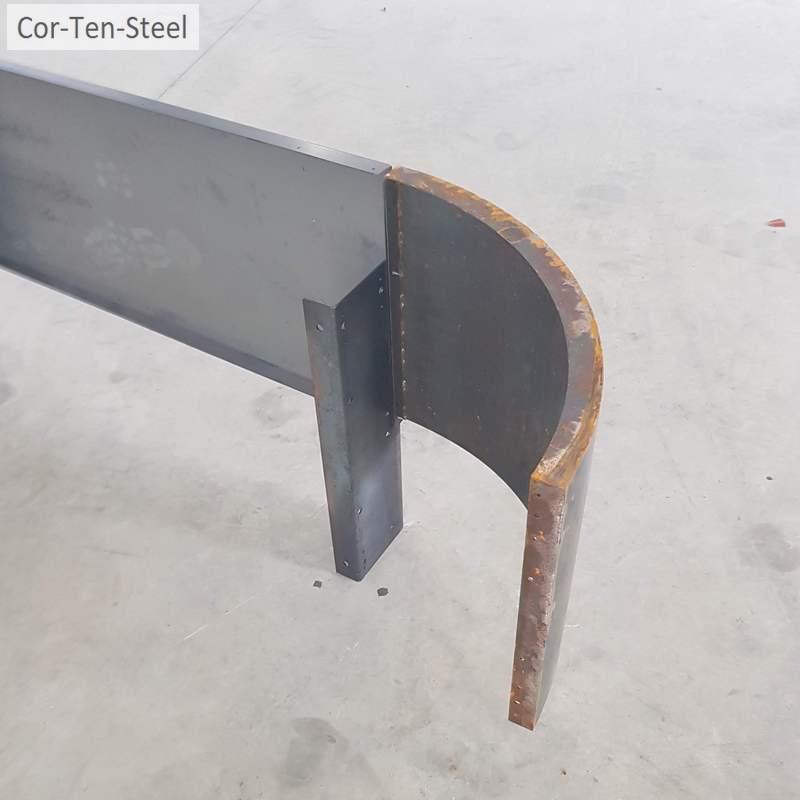

90deg corner
90deg external corner joiner
Change of direction at panel joins
The modular layout has over 50 different panel sizes to choose from, this enables you to build corten retaining walls that suit almost any location.

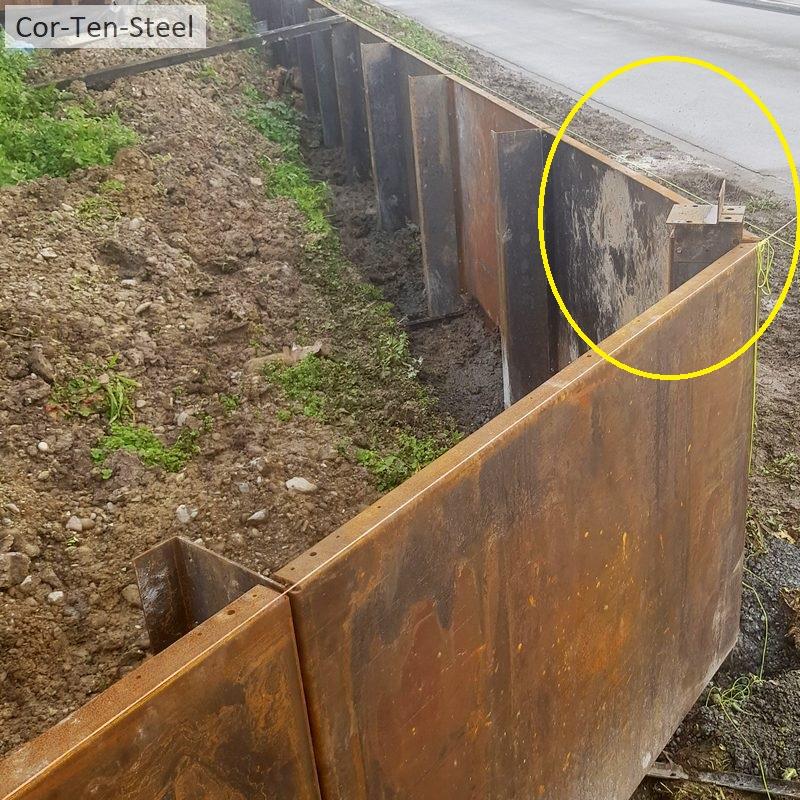

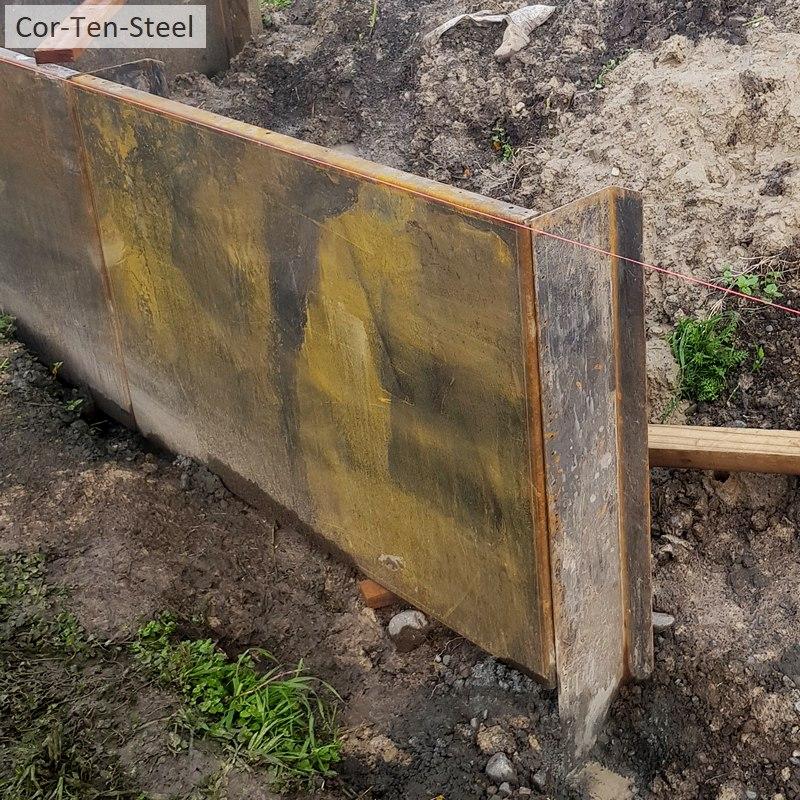

Corten panel ready for next post to be screwed on

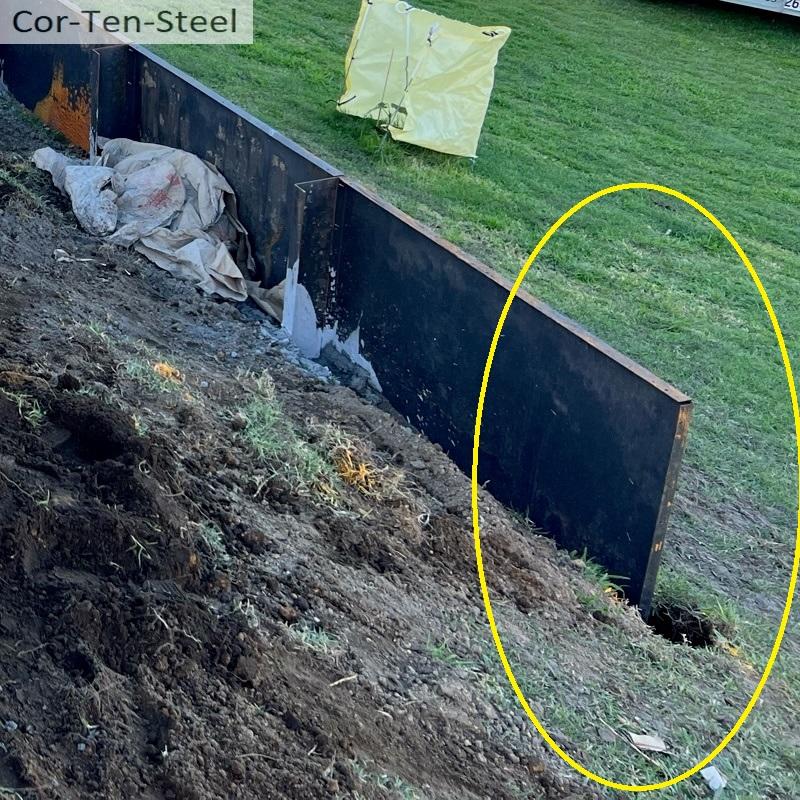

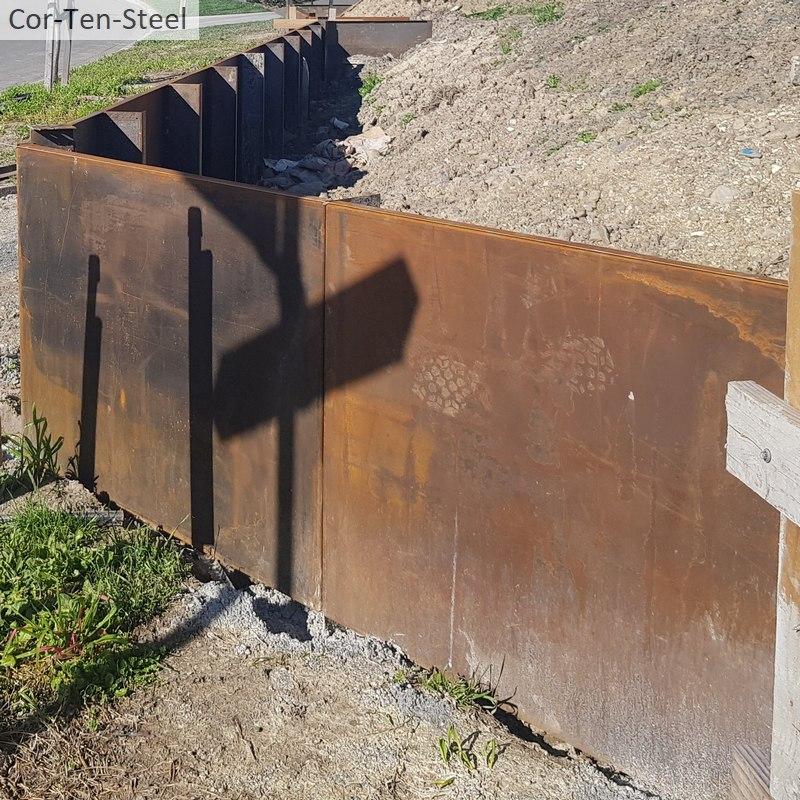

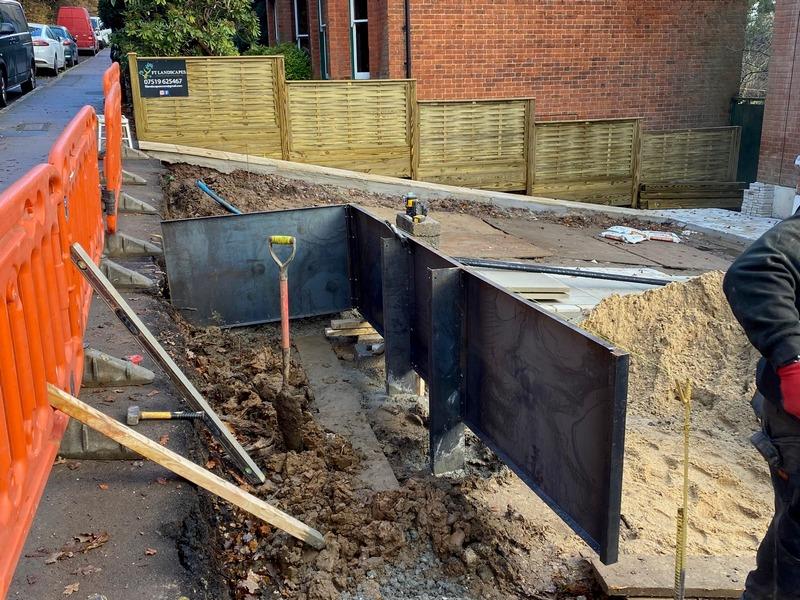

To build the wall you start at one end and continue construction by adding panels and posts Hole already dug for next post
Setout examples and prices
Please email us your requirements, be sure to attached pics and sketches We can then help you with post and panel sizes required for your retaining wall

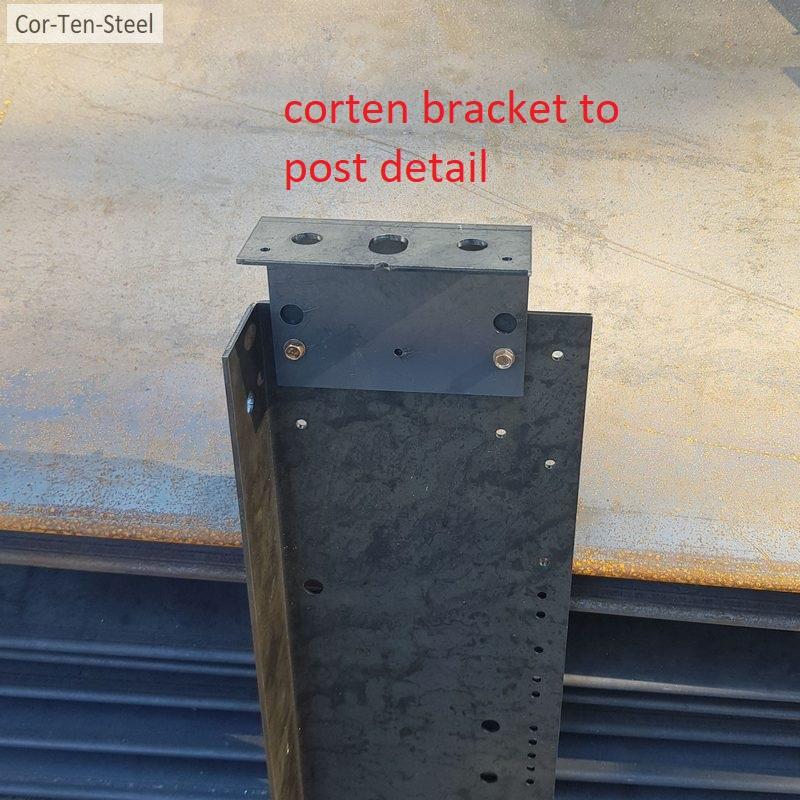

Secure capping brackets to posts with TEK screws
[email protected]

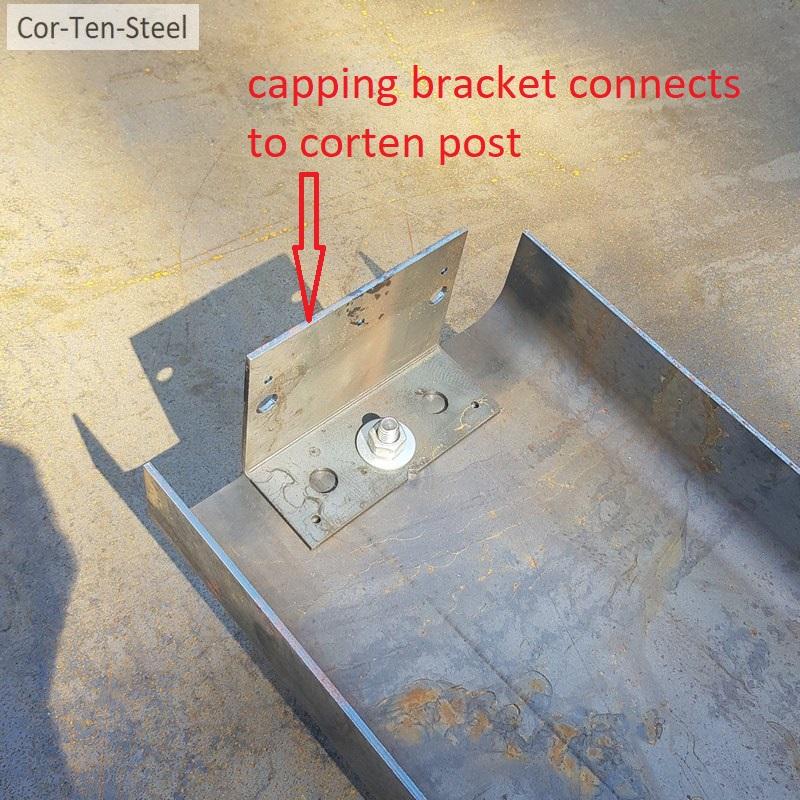

Capping bracket added to post
Cappings come with nuts and bolts to connect to brackets

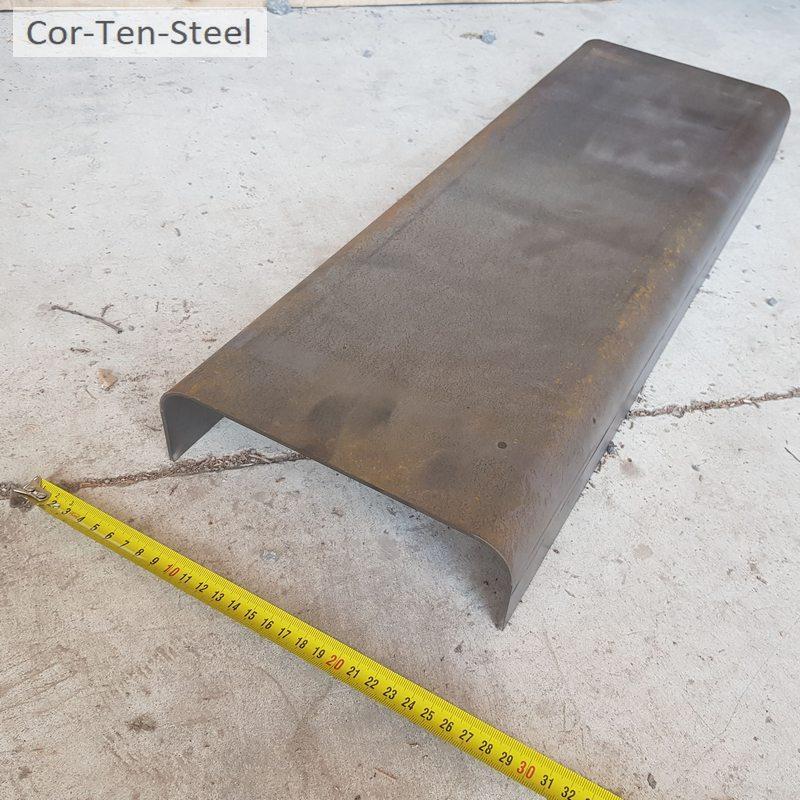

Capping 8-1/2″ x 2-1/2″
How to install capping video
Capping bracket added to post
Cappings come with nuts and bolts to connect to brackets

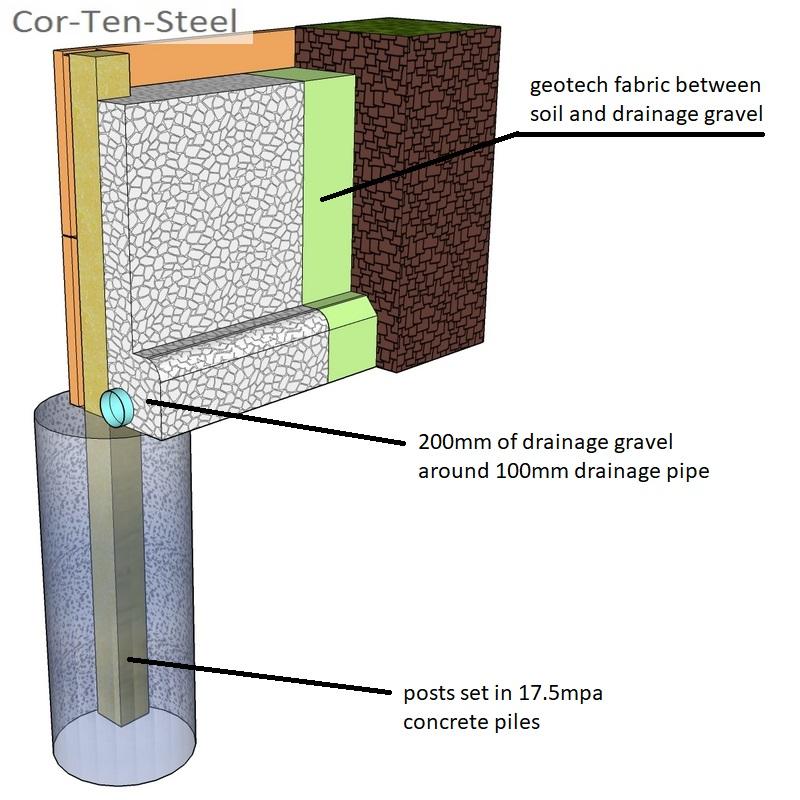

Retaining wall drainage info
A well built corten retaining wall with proper drainage will easily last 30-50yrs plus, depending on the environment

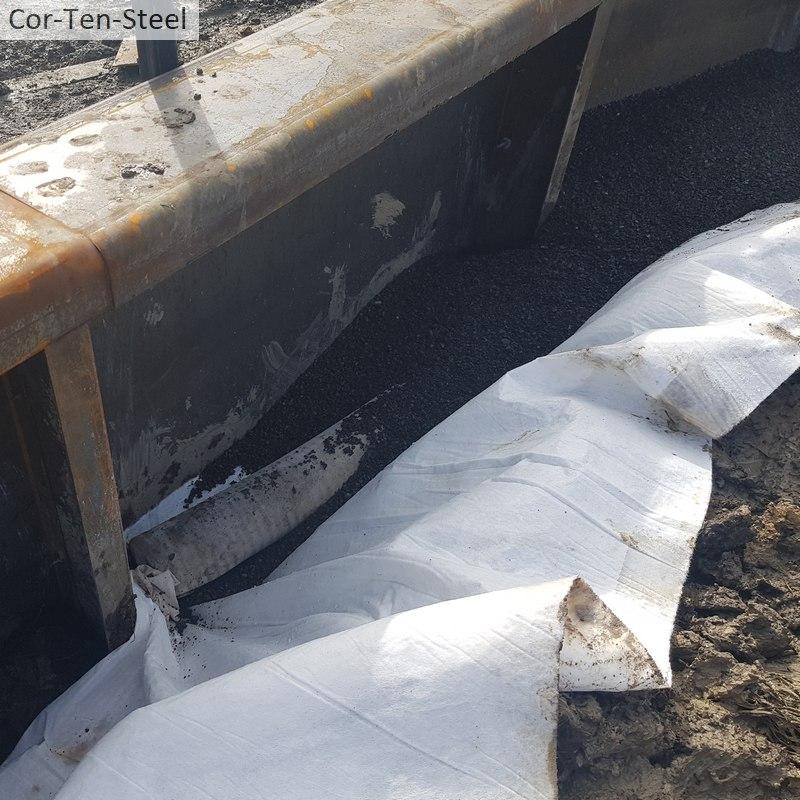

Retaining wall drainage info

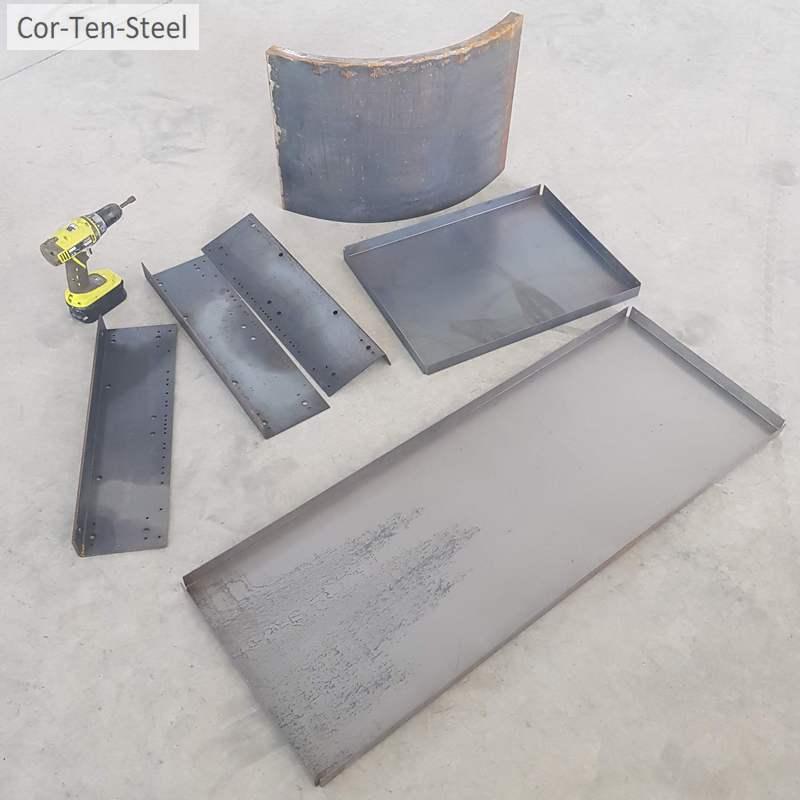

Our corten retaining wall system is DIY friendly and all parts come pre drilled ready to install with no special tools required. You should not need to do any cutting or welding of the corten.
All parts predrilled for easy assembly
The steel is either TEK screwed or bolted together

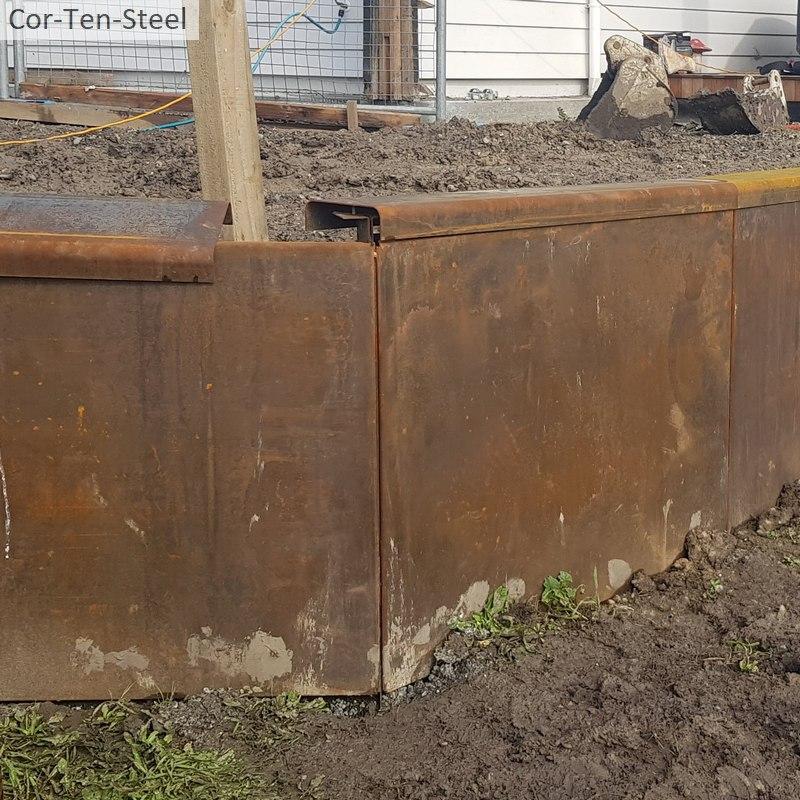

Corten retaining wall with capping
Corten steel requires no maintenance, as over time it develops a crystalline rust patina that dramatically reduces further corrosion

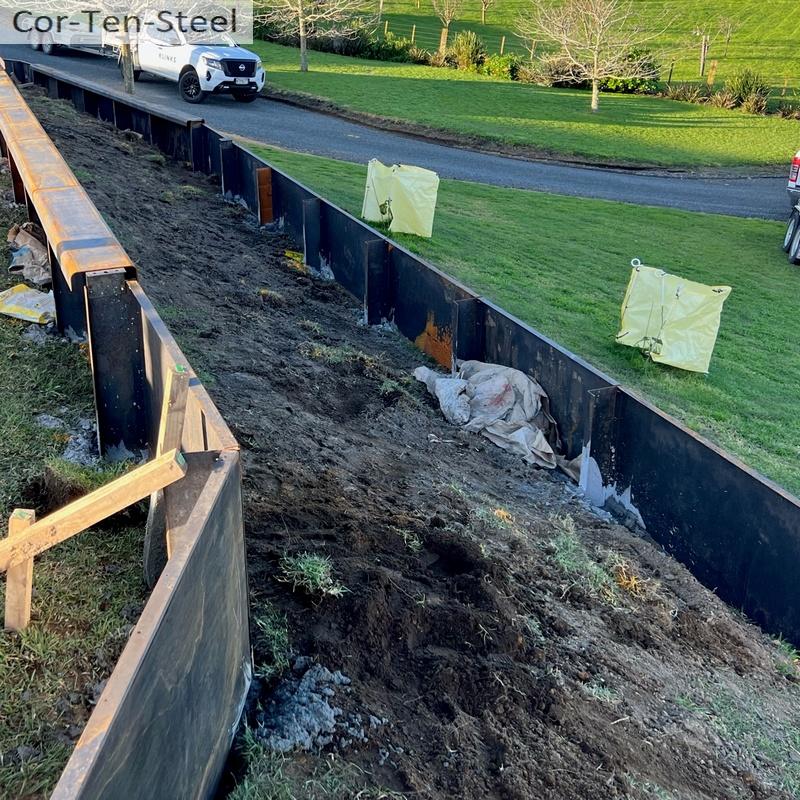

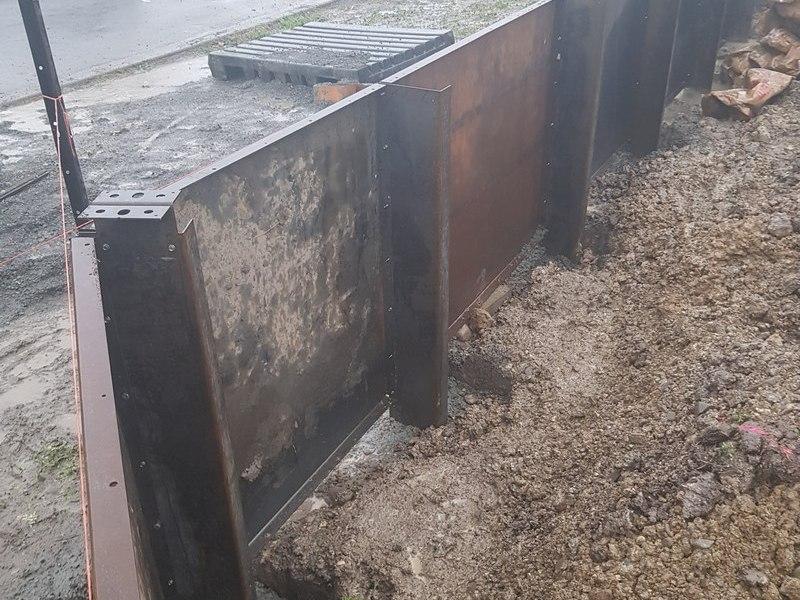

Posts set in concrete pile holes
Generally the retaining wall pile hole depth is equal to the height of the retaining wall. However in softer soils or walls supporting sloping ground, driveways, or buildings, the post and pile retaining wall method solves this by adjusting the post spacings and pile depths.
Setout examples and prices
Generally the retaining wall pile hole depth is equal to the height of the retaining wall. However in softer soils or walls supporting sloping ground, driveways, or buildings, the post and pile retaining wall method solves this by adjusting the post spacings and pile depths.
Email us
Please email us your requirements, be sure to attached pics and sketches We can then help you with post and panel sizes required for your retaining wall

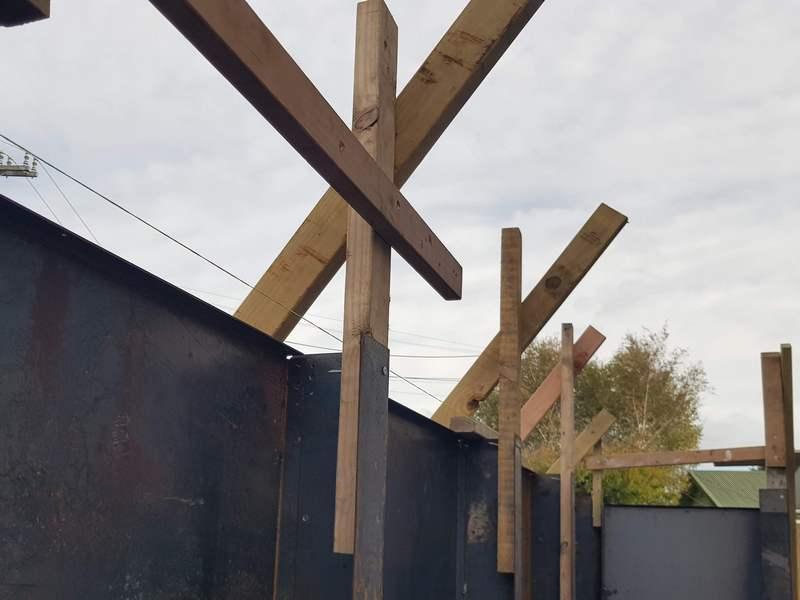

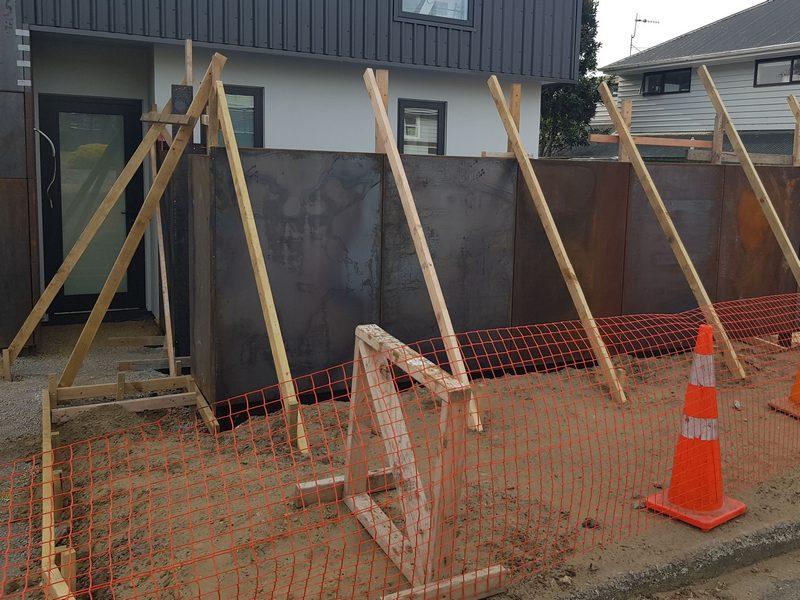

Temporary Braces
Corten support posts, with temporary timber bracing, before concrete is poured into pile holes
Temporary Braces

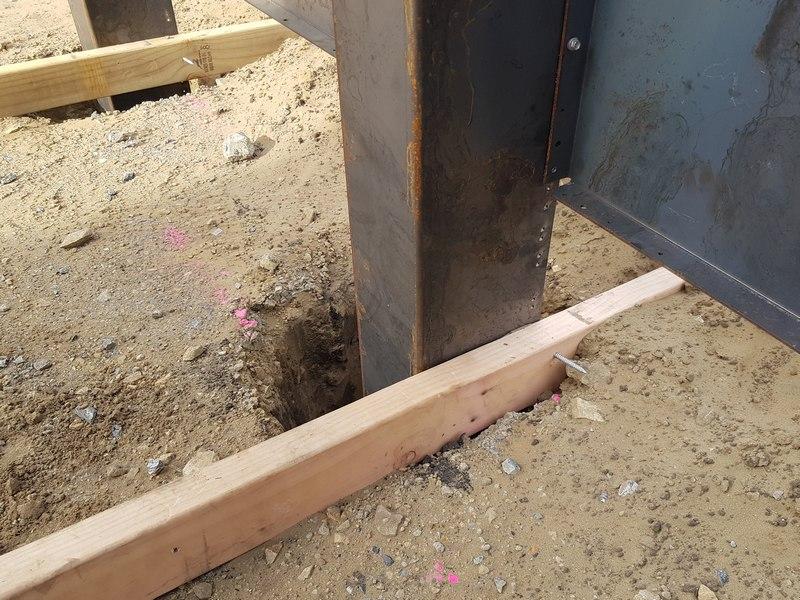

Corten support posts, with temporary timber bracing, at bottom of post. The corten steel posts have pre-drilled holes, making it easy to add the timber braces.
Temporary Braces
Corten support posts, with temporary timber bracing, at top of post. Remove bracing once concrete has set
Corten Retaining Walls
The modular design creates a very strong and stable structure.

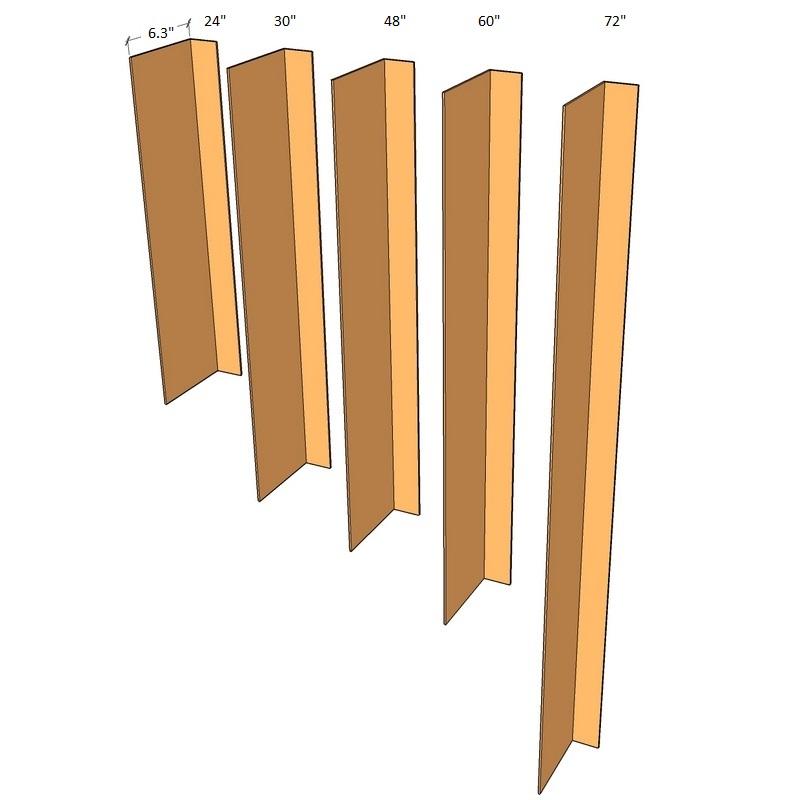

Longer posts
Longer posts used in softer soils

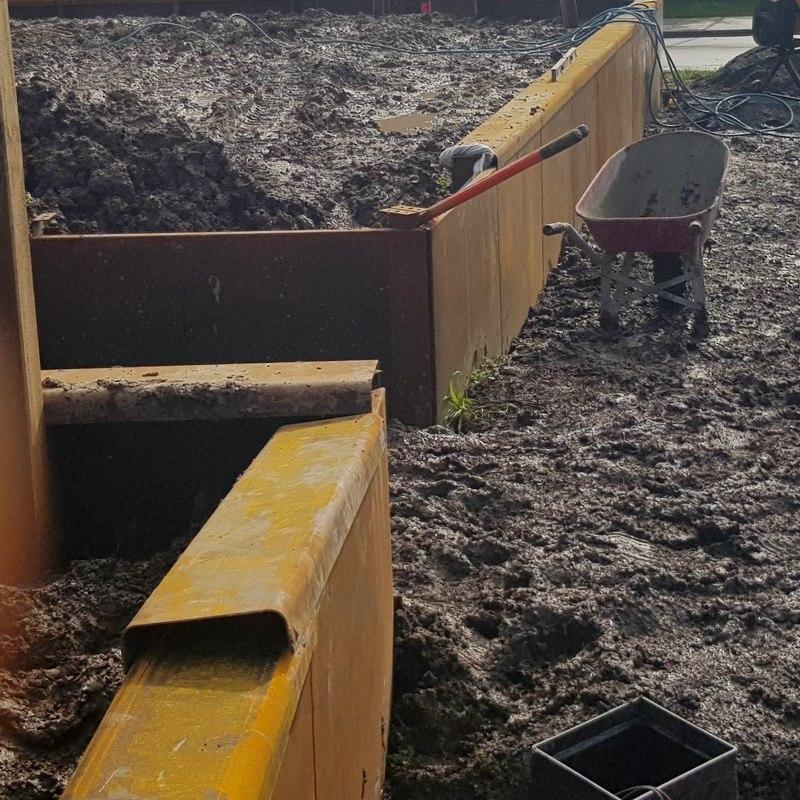

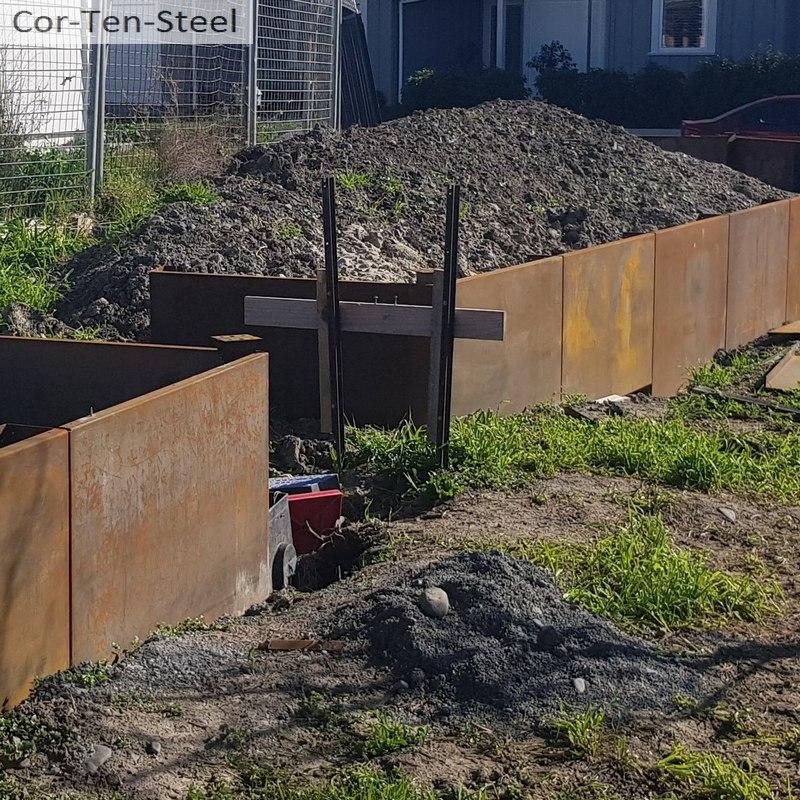

Corten Steps
Corten side returns for steps
Corten Capping
Installing corten capping
Corten Steel Care and Maintenance
Corten steel, also known as weathering steel, is a high tensile steel that forms a protective layer of rust or patina when exposed to the elements. This patina shields the steel from further corrosion, giving it a characteristic reddish-brown color.
How to assemble videos
Our corten retaining wall system is DIY friendly and all parts come pre drilled ready to install with no special tools required. You should not need to do any cutting or welding of the corten.

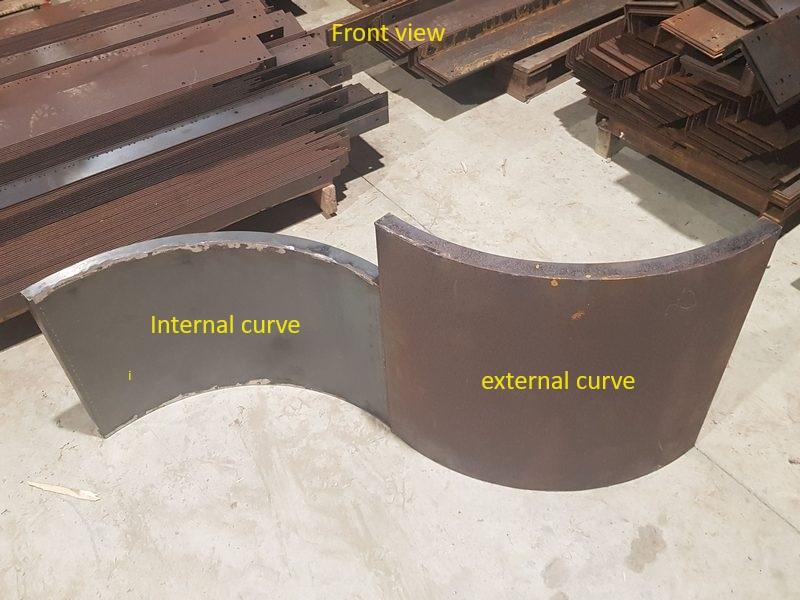

Internal and external curved pieces available
We work with landscapers, architects, engineers, and Diyers to provide corten retaining wall layouts that are easy to assemble, we provide these retaining wall layouts for free. Please contact us via email
Setout examples and prices
To form this protective patina, corten steel needs repeated cycles of wetting and drying. If buried or otherwise prevented from experiencing these cycles, corten steel will not develop the patina and will rust at a similar rate to mild steel.
Internal and external curved pieces available
We work with landscapers, architects, engineers, and Diyers to provide corten retaining wall layouts that are easy to assemble, we provide these retaining wall layouts for free. Please contact us via email

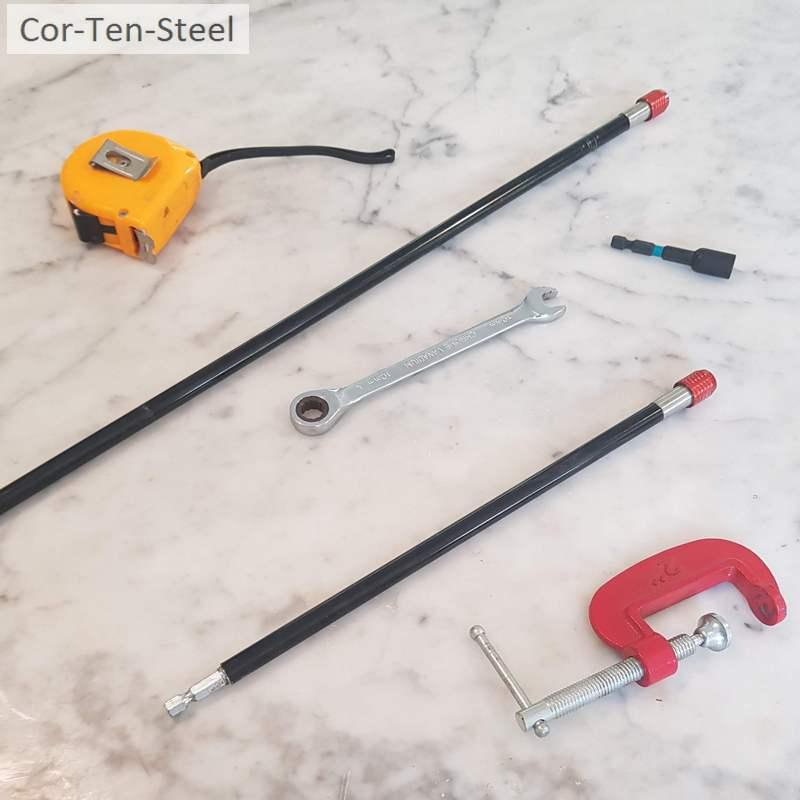

Tools needed
5/16th” Nut driver Variable speed drill G clamps Ratchet spanner Tape measure Drill extension bar (optional)
Any questions email us
[email protected]

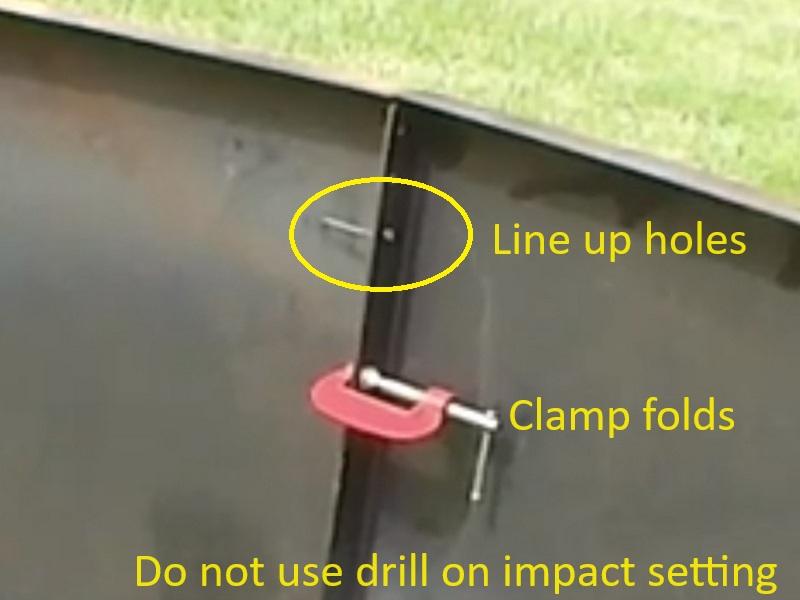

Panel assembly
These panels come pre-made Just screw them together – it’s like giant Lego for grown-ups!
Longer posts
The modular design of Lego-type corten walls and support posts set in concrete pile holes ,creates a very strong and stable structure that can withstand significant lateral pressure from soil behind the wall.

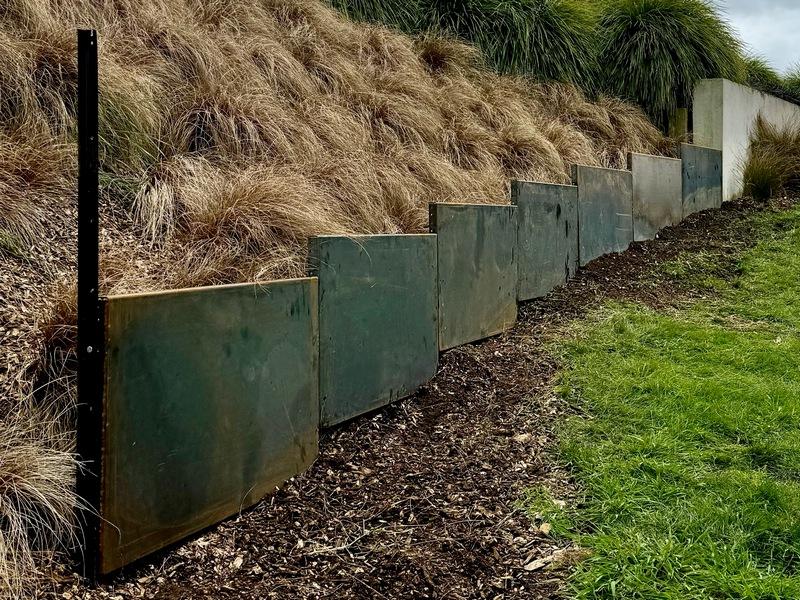

Panels can be offset
The modular design of Lego-type corten walls allows for panels to be offset and different sized panels to be joined to each other

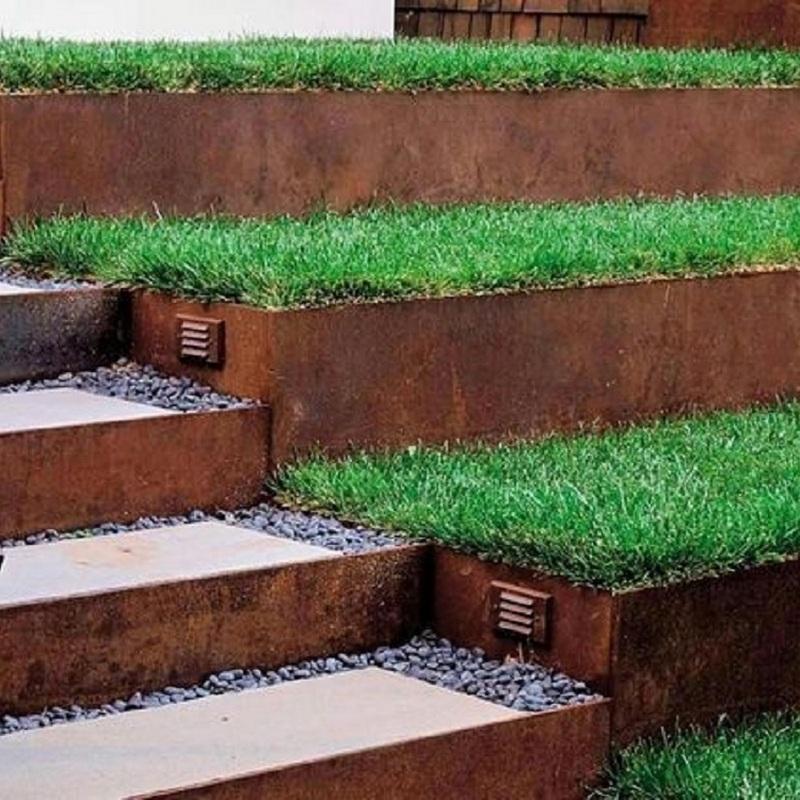

Corten step options
Adapt your corten steel design with steps.
